Since the screen resolution is increased, the calorific value of chip rises as well. In the limited space, the traditional aluminum-extruded heat sink can't meet the need. Therefore, we not only can use single heatsink but also combine the heat pipe, fan fin and so on to improve the thermal performance.

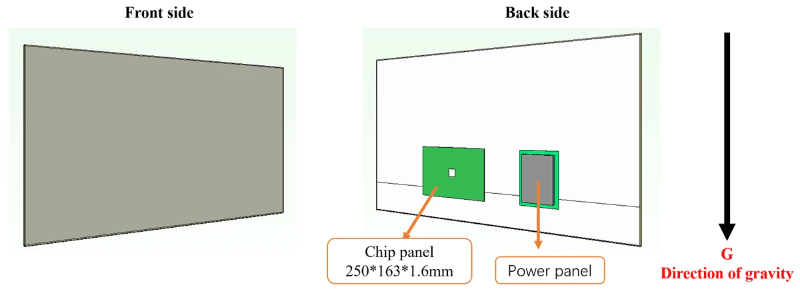

Parameter setting

We simplify the model: there are only two heat sources (CPU and the other). This solution is especially designed for this case, please do not apply to others. If so, we will not be responsible for damage of the machine.

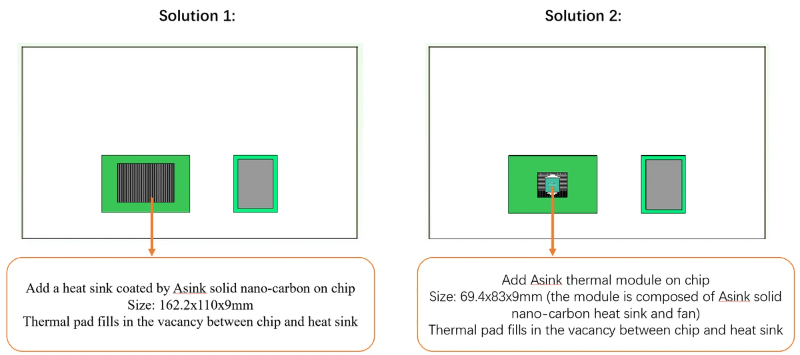

Thermal Solution

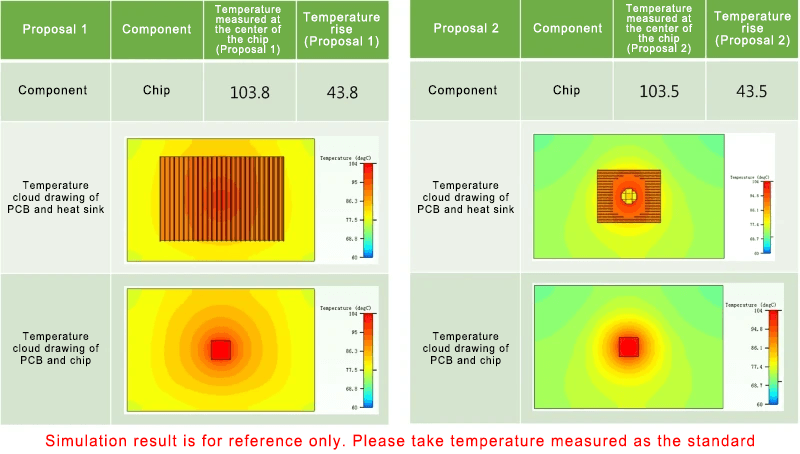

Result

Conslusion: Both can satisfy customer's need and have similar thermal performance. Solution 1 uses traditional aluminum-extruded heat sink and thus needs a heat sink with bigger size (162.2x110x9 mm).
Solution 2 uses thermal module which has better thermal performance and thus required smaller volume (69.4x83x9 mm). But there will be some noise problems when using the fan.

Schematic diagram of thermal solution

Only as reference of size(for solution 1)

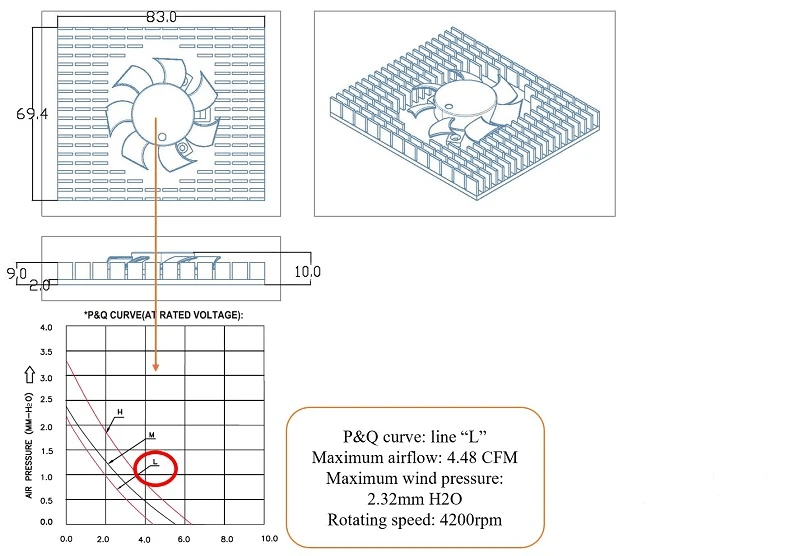

Only as reference of size(for solution 2)
